Large Rotary Tiller

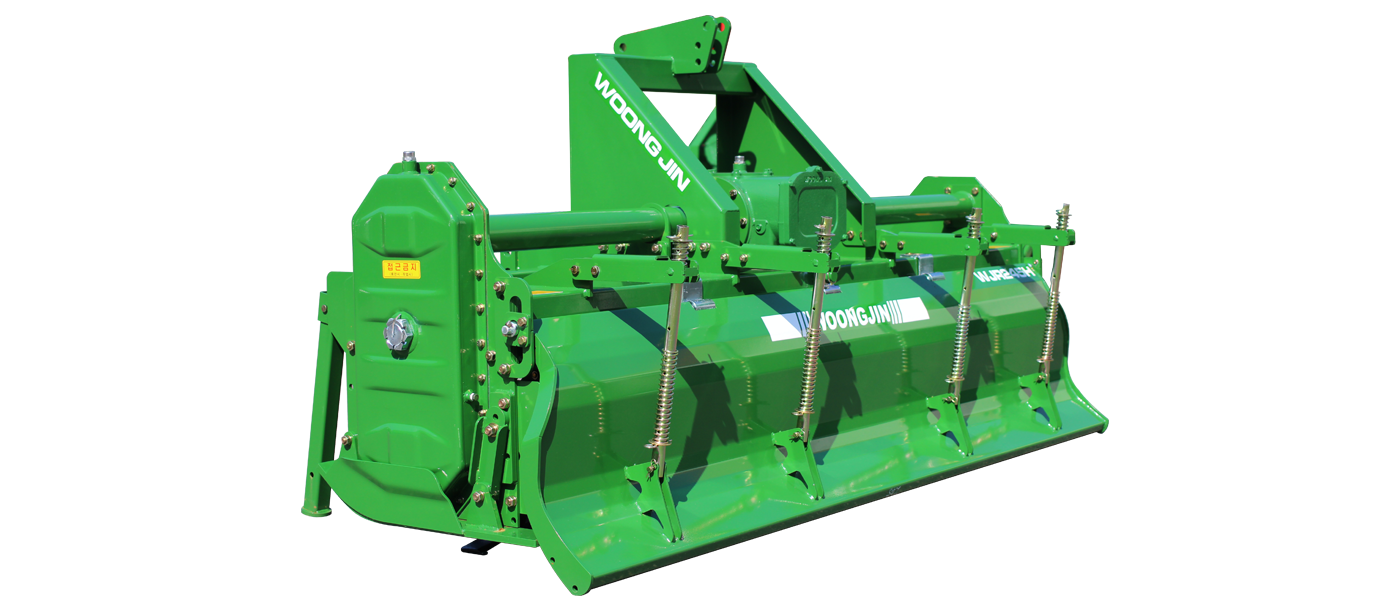

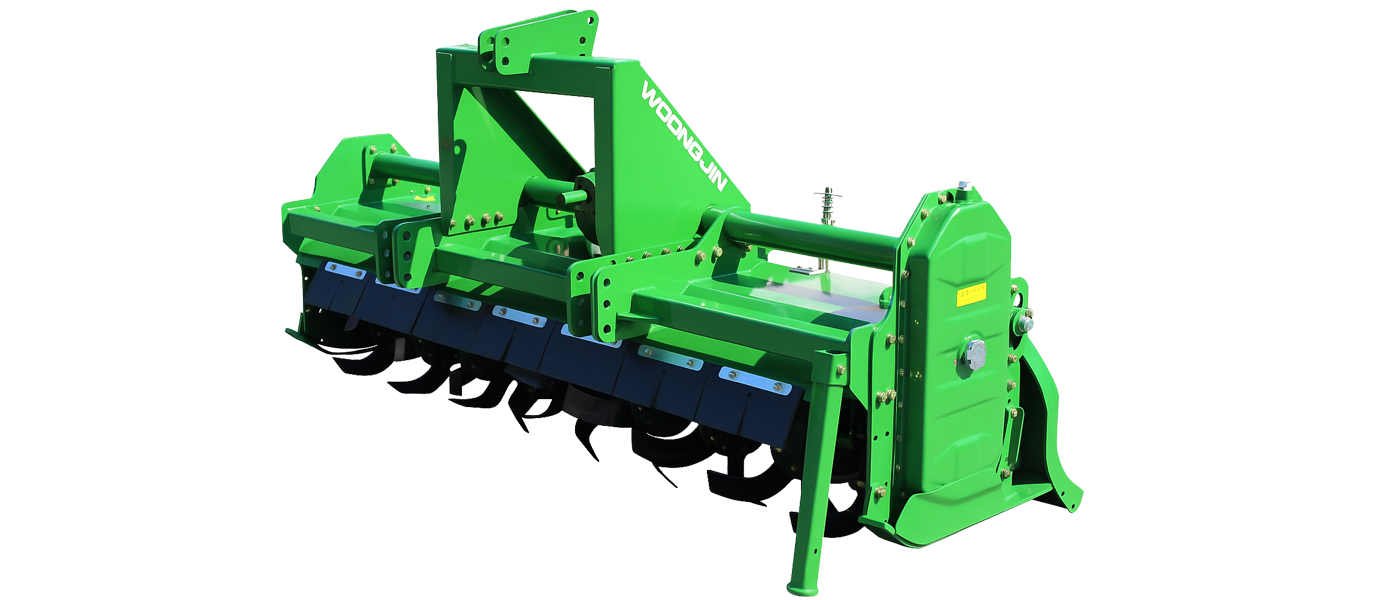

High-Clearance Rotary Tiller (Raised PTO Design) RH Type
Maximum Value for Large Tractors — the cost of a mid-size, the power of an extra-large.
WJ280SEH
Operation
Video
Back

Feature of product

01 High-Clearance Rotary Raised PTO ground clearance improves joint articulation, reducing noise and enhancing power transmission and durability.
02 Superior Performance Engineered for reliability with uncompromising quality, achieving optimal performance and virtually zero downtime.
03 Unmatched Efficiency and Versatility The ultimate Woongjin rotary tiller, delivering peak efficiency, user-friendly operation, long-lasting durability, and universal adaptability.

Specifications

Model Size (mm) Tilling Width
(mm)
Required Power
(hp)
Weight
(kg)
Flange
Quantity
Blade
Quantity
Harrow
availability
Length Width Height
R218H 1,260 2,290 1,380 2,115 70~80 765 8 48 ○
WJR235H 1,260 2,550 1,380 2,300 90~105 815 9 54 ○
WJR245H 1,260 2,650 1,380 2,390 105~115 835 9 54 ○
WJR260H 1,260 2,760 1,380 2,545 115~130 880 10 60 ○
WJR280H 1,260 3,040 1,380 2,760 130~ 925 11 66 ○
↑
